SECTION VIII
MEMBER STATES SUMMARY SHEETS
In this section Member States summary sheets are presented, including information on water
quality and trends, as well as main highlights on pressures from agriculture, nitrate vulnerable
zones and controls of compliance with the measures in the action programmes.
Unless otherwise specified, all information on water quality is based on the analysis of the
digital data provided by Member States. Section VII includes a Methodological Annex
providing details on the methodology followed to estimate the figures presented in the
Member States Summary Sheets.
It is to be noted that both comparability across EU Member States and between reporting
periods has to be considered indicative for several reasons. For instance, Member States have
used different methodologies for the assessment of the trophic status and, in some cases, for a
given Member State the methodology used changed between the 2008-2011 and 2012-2015
reporting periods. In addition, information on reference conditions is needed to provide a
complete picture on eutrophication. Moreover, the monitoring networks set by the Member
States have also been submitted to different degree of changes since the previous reporting
period.
The information on pressure from agriculture in the Member States summary sheets
(including animal numbers and mineral and manure N use) is based on the written reports
submitted by Member States. However, in order to ensure comparability among Member
States and to provide a reference for EU, Eurostat data have also been used in the
Commission report
1
.
As regards nitrates vulnerable zones, unless otherwise specified in the text, the figures refer
to the designations in force at end of 2015.
1
It should be noted that it has been observed that in some cases there are discrepancies between the data
reported by the Member States in article 10 reports and Eurostat data.
102
 kom (2018) 0257 - Ingen titel
1.
Member State: Austria
Water quality
2
Water monitoring stations
Description
Total groundwater stations
Total fresh surface water stations
Total saline surface water stations
Table 1. Number of water monitoring stations
Stations with
measurements
1965
108
Not relevant
Stations with trends
1906
107
Not relevant
Groundwater quality
Nitrates concentration
Trends in nitrates concentration
Figure 1. Percentage of groundwater
stations with average values equal to or
exceeding 25, 40 or 50 mg nitrate per L
during the current and previous
reporting periods. Results are presented
for all groundwater stations (at different
depths).
Figure 2. Percentage of stations
with decreasing, stable or
increasing trends in average
groundwater nitrate
concentrations between the
reporting periods 2008-2011 and
2012-2015.
2
Water quality data are based on data submitted by the Member States through EIONET (RP6: submission between July and September
2016, RP5: May 2013, RP4: September 2009). Average nitrate concentrations for each Reporting Period were calculated from the
annual averages and weighted according to the number of annual measurements. Other information is taken from the MS article 10
report.
103
 kom (2018) 0257 - Ingen titel
Surface water quality
Nitrates concentration
Trends in nitrates concentration
Figure 3. Percentage of fresh surface
water stations with average values equal
to or exceeding 25, 40 or 50 mg nitrate
per L on average during 2012-2015 and
the previous reporting periods.
Figure 4. Percentage of stations
with decreasing, stable or
increasing trends in fresh surface
water nitrate concentrations
between the reporting periods
2008-2011 and 2012-2015.
Eutrophication
Fresh waters
Eutrophication in rivers is assessed with the biological quality parameter phytobenthos, using the Water
Framework Directive (WFD) classification. For this reporting period, data covering 2013-2015 were used. For
the previous reporting period, data covering 2010-2012 were used. The WFD classification was derived from
the comparison of the current ecological status with the trophic ground state (region specific reference state).
The Nitrate Directive classification considers the trophic state only without reference to the trophic ground
state. It distinguishes oligotrophic, mesotrophic and eutrophic.
The trophic state of lakes is based on phytoplankton, according to the WFD methodology. The assessment for
the current reporting period is based on the data covering 2012-2014. The ecological status was reclassified to
trophic status in a similar manner as described above for rivers.

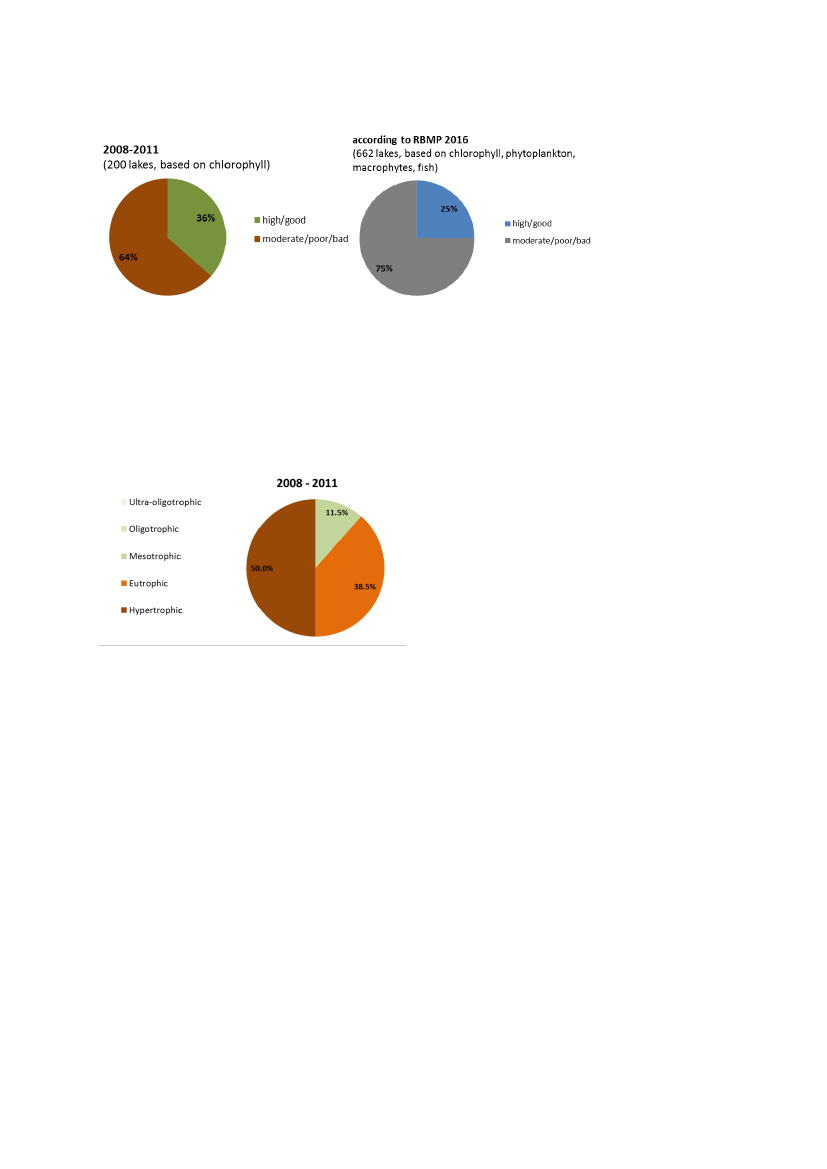

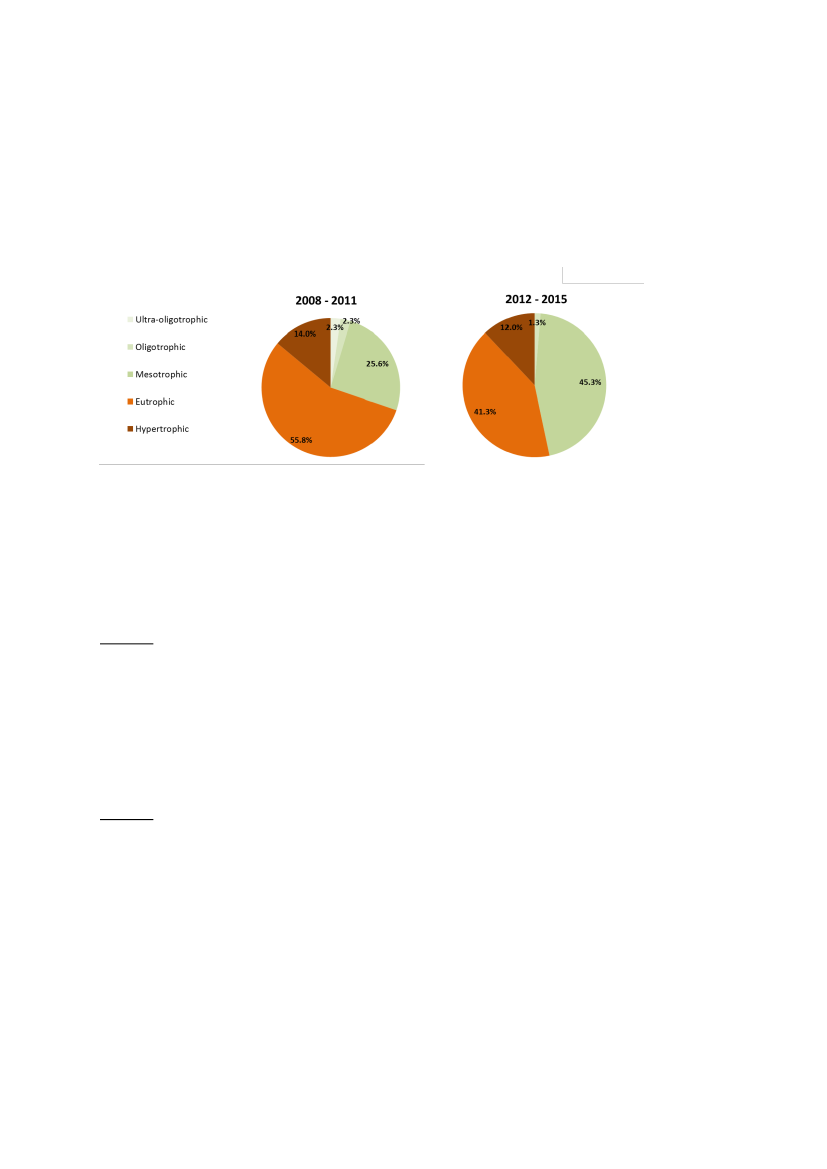

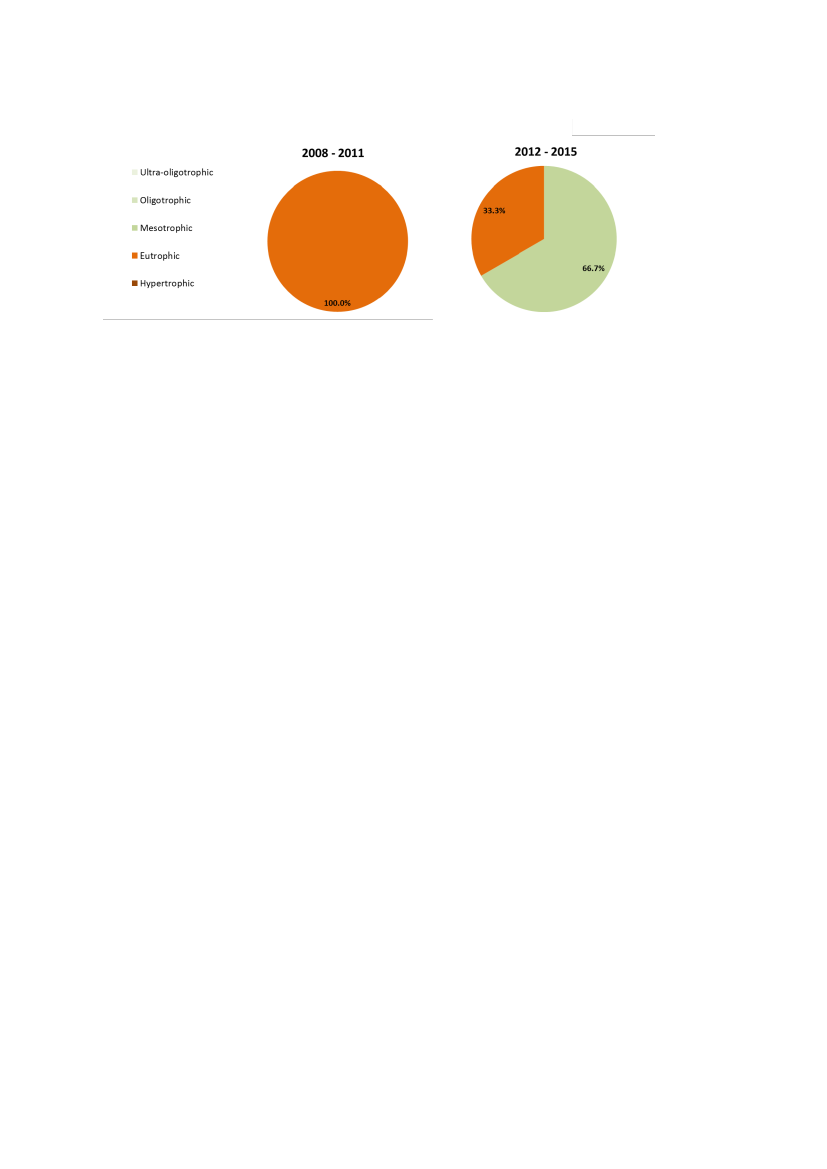

Figure 5. Fresh water ND eutrophication classification during the previous and current reporting period.
Saline waters
Not relevant.
104
 kom (2018) 0257 - Ingen titel
Main findings of monitoring programmes in line with Article 5 (6) of the Directive
The Austrian monitoring network was adapted to the WFD guidelines in 2006. Depending on the objective,
three types of monitoring are distinguished: overview, operational and specific research. Rivers are sampled
monthly on physical and chemical parameters, and every three years once per year on biological parameters.
Lakes are sampled every three months on physical, chemical parameters and phytoplankton, and every six
years on other biological parameters.
Approximately 50% of the groundwater monitoring network is located in agricultural areas, but this varies per
region. In general, regions with a high environmental risk (nutrients pressure by agriculture or environmental
pressure from other sources) have a higher station density than regions with a low environmental risk. The
groundwater stations are sampled four times a year, but the frequency may decrease to one or two samples a
year when there is only a small risk that the water quality standards are not met.
Pressure from agriculture
The total agricultural area decreased by 5% between 2013 and 2010, mainly due to the smaller area of
permanent grassland. Between 2010 and 2014, the number of cattle and pigs decreased by 3% and 8%,
respectively, while the number of poultry increased by 7%. This is also represented by the nitrogen excretion
which shows similar small changes. The annual use of nitrogen from livestock decreased by 4% between 2010
and 2013, while the use of mineral fertilizer nitrogen increased by 3%.
Due to the high proportion of extensively used mountain pastures, the report also presents nitrogen use,
excluding the mountain pastures. The annual use of nitrogen from livestock is 60 kg (including mountain
pastures) and 74 kg (excluding mountain pastures) N/ha. For mineral nitrogen these figures are 99 and 121 kg
N/ha, respectively.
The gross nitrogen balance (OECD) was 32 kg/ha for the 2012-2014 period, which is slightly up from the
previous 2008-2011 period at 28 kg/ha. The annual trend from 2007 onwards shows a more or less stable
trend with some annual variation.
Controls
All farms that receive payments under CAP are checked administratively whether they comply with the
nitrogen standard of 170 kg/ha per year. Out of these farms at least 1% of the farms are checked on site.
Additional controls were carried out on nearly 10% of the farms within the agro-environmental ÖPUL program,
which includes approximately 85% of the agricultural area, excluding mountain pastures. For the ÖPUL
measures on soil and water quality the proportion of infringement was 2.6%, which were mainly classified as
light infringements (details were not reported).
Designation of nitrate vulnerable zones (NVZs)
Austria adopts a whole territory approach (83,879 km
2
).
105
 kom (2018) 0257 - Ingen titel
Member State: Belgium
Belgium-Flanders
Water quality
3
Water monitoring stations
Description
Total groundwater stations
Total fresh surface water stations
Total saline surface water
stations
Table 1. Number of water monitoring stations
Stations with
measurements
(nitrate)
2071
768
0
Stations with trends
(nitrate)
1979
756
0
Groundwater quality
Nitrates concentration
Trends in nitrates concentration
Figure 1. Percentage of groundwater
stations with average values equal to or
exceeding 25, 40 or 50 mg nitrate per L
during the current and previous
reporting periods. Results are presented
for all groundwater stations (at different
depths).
Figure 2. Percentage of stations
with decreasing, stable or
increasing trends in average
groundwater nitrate
concentrations between the
reporting periods 2008-2011 and
2012-2015.
3
Water quality data are based on data submitted by the Member States through EIONET (RP6: submission between June and August 2016,
RP5: May 2013, RP4: September 2009). Average nitrate concentrations for each Reporting Period were calculated from the annual
averages and weighted according to the number of annual measurements. Other information is taken from the MS article 10 report.
106
 kom (2018) 0257 - Ingen titel
Surface water quality
Nitrates concentration
Trends in nitrates concentration
Figure 3. Percentage of fresh surface
water stations (rivers only) with average
values equal to or exceeding 25, 40 or 50
mg nitrate per L on average during 2012-
2015 and the previous reporting periods.
Figure 4. Percentage of stations
with decreasing, stable or
increasing trends in fresh surface
water (rivers only) nitrate
concentrations between the
reporting periods 2008-2011 and
2012-2015.
Eutrophication
Fresh waters
Eutrophication in rivers and lakes is assessed according to the WFD methodology, using summer average total
phosphorus concentrations. The threshold values depend on the water category; Flanders distinguishes two
river and five lake categories.
Figure 5. Fresh water eutrophication classification during the previous and current reporting period.
Aggregated values for 2008-2011, Eutrophic and Hypertrophic: 82%
Aggregated values for 2012-2015, Eutrophic and Hypertrophic: 76%
107
 kom (2018) 0257 - Ingen titel
Saline waters
Transitional waters are assessed with winter average concentrations of nitrate, nitrite and ammonium.
Eutrophication of coastal and marine waters is reported by the federal authorities.

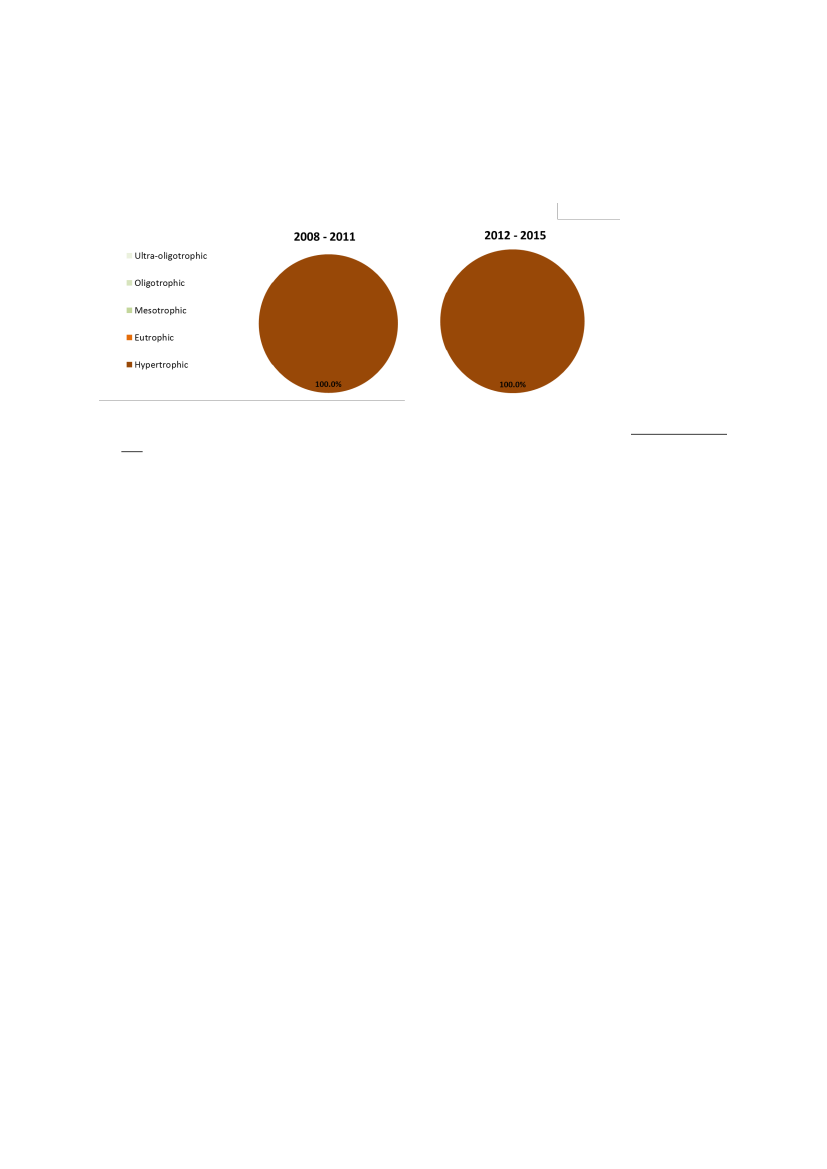

Figure 6. Saline water eutrophication classification during the previous and current reporting period (transitional waters
only).
Aggregated values for 2008-2011, Eutrophic and Hypertrophic: 100%
Aggregated values for 2012-2015, Eutrophic and Hypertrophic: 100%
Main findings of monitoring programmes in line with Article 5 (6) of the Directive
Surface water monitoring is organised by the Vlaamse Milieumaatschappij, which maintains a specific
agricultural network of approximately 800 sites in areas with predominantly agricultural pollution sources.
Each site is sampled once a month on nitrate. Sites with consistent low values are only sampled three times a
year. Since 2007, the surface water monitoring network was extended within the WFD framework with some
240 additional stations that are monitored for a range of eutrophication parameters.
The current groundwater monitoring network is used since 2004, with currently around 2,100 monitoring sites
in the agricultural areas of Flanders. All sites are sampled twice a year. Flanders has developed a system of 38
Hydrological Homogeneous Zones, which indicates the potential sensitivity for nitrate leaching. The density of
monitoring sites is related to the sensitivity for nitrate leaching, and varies from 200 ha of agricultural land per
monitoring point in most sensitive areas to 1,133 ha of agricultural land per monitoring point for the least
sensitive areas.
Pressure from agriculture
The total agricultural area remained stable since the previous reporting period, with a small reduction of
permanent pasture (-4%) and small increase of perennial crops (+4%). Farm numbers continued to decrease,
5% in the current reporting period, compared to the previous reporting period. The use of nitrogen from
manures decreased with 5%, while the use of mineral fertilizers remained at the same level. Cattle numbers
decreased slightly (-2%), while pig and poultry numbers increased by 3% and 14%, respectively. Longer term
trends, since 1996, show gradual decreases in the number of cattle. Pigs and poultry showed a decrease until
reporting period 3 (2004-2007), but increased again since then. This increase is due to the possibility to extend
the farm size in combination with proven manure treatment and export. The total nitrogen excretion from
cattle and pigs remained almost stable, while the excretion from poultry increased by 14%. The increased
108
 kom (2018) 0257 - Ingen titel
manure production did not create additional agricultural pressure on soils as it needed to be processed and
exported.
Controls
The number of annual controls on manure and fertiliser application between 2012-2015 varied from 633 to
1,909 with 10 to 15% infringements. The main infringements were on low emission application technique,
application near water courses and on-field manure storage (which is prohibited during the winter). Other
controls focused on illegal discharge of manures (66 to 100 annual controls with 38 to 49% infringements),
manure transport (1,240 to 1,577 annual controls with 7 to 15% infringements).
Annual average soil nitrate residues (90 cm) in autumn were on average between 52 and 66 kg N/ha for the
2012-2015 period, compared to 66 to 90 kg N/ha for the 2008-2011 period. The longer term trend, since 2004,
also shows a gradual decline in residual nitrate. The amount of treated and exported manure has increased
from 16 kt N in 2007 to 39 kt N in 2014, which was mainly caused by an increasing amount of treated pig
manure and exported poultry manure. The total area of farmland under agro-environmental schemes that
contribute to decreased nutrient loads to ground- and surfacewaters increased from around 18,000 ha in 2000
to around 34,000 ha in 2010. Since then the area under agreements has decreased again until 23,000 ha in
2014.
Designation of nitrate vulnerable zones (NVZs)
Flanders adopts a whole territory approach (13,522 km
2
). Since 2011, Flanders uses focus areas to indicate
areas with poor surface water quality (based on the evaluation of the exceedance of the threshold of 50 mg
nitrate per L) or poor groundwater quality (based on the evaluation of the zonal groundwater goals by means
of a trend analysis in relation to the threshold of 50 mg nitrate per L). The focus areas are designated on an
annual basis. The total focus area comprised 265,000 ha in 2011-2012, and 238,000 ha in 2015.
109
 kom (2018) 0257 - Ingen titel
Belgium - Wallonia
Water quality
4
Water monitoring stations
Description
Total groundwater stations
Total fresh surface water stations
Total saline surface water stations
Table 1. Number of water monitoring stations
Stations with
measurements
866
67
Not relevant
Stations with trends
857
64
Not relevant
The fresh surface water stations are located in rivers, including dam reservoirs. Dam reservoirs are considered
as ‘heavily modified rivers’ under Water Framework Directive (WFD) classification.
Groundwater quality
Nitrates concentration
Trends in nitrates concentration
Figure 1. Percentage of groundwater
stations with average values equal to or
exceeding 25, 40 or 50 mg nitrate per L
during the current and previous
reporting periods. Results are presented
for all groundwater stations (at different
depths).
Figure 2. Percentage of stations
with decreasing, stable or
increasing trends in average
groundwater nitrate
concentrations between the
reporting periods 2008-2011 and
2012-2015.
Water quality data are based on data submitted by the Member States through EIONET (RP6: submission between June and July 2016,
RP5: May 2013, RP4: September 2009). Average nitrate concentrations for each Reporting Period were calculated from the annual
averages and weighted according to the number of annual measurements. Other information is taken from the MS article 10 report.
110
 kom (2018) 0257 - Ingen titel
Surface water quality
Nitrates concentration
Trends in nitrates concentration
Figure 3. Percentage of fresh surface
water stations with average values equal
to or exceeding 25, 40 or 50 mg nitrate
per L on average during 2012-2015 and
the previous reporting periods.
Figure 4. Percentage of stations with
decreasing, stable or increasing
trends in fresh surface water nitrate
concentrations between the reporting
periods 2008-2011 and 2012-2015.
The Walloon authorities report that average nitrate concentrations in dam reservoirs (2014) are always lower
than 10 mg/L.
Eutrophication
Fresh waters
Eutrophication in rivers is assessed according to the WFD methodology, using annual average orthophosphate
and total phosphate concentrations of rivers. Wallonia applies two type-specific threshold values for
eutrophication, depending on slope, location, size and soil type.
For dam reservoirs, Wallonia classifies the eutrophication status in two classes, i.e. “good or better” and
“average or worse”, with a threshold value of 25 µg/L for chlorophyll-a. The methodology is currently being
revised according to WFD standards, but not implemented yet. The Walloon authorities report that 11 out of
the 12 dam reservoirs were classified as “good or better” in the previous and current Reporting period.
Figure 5. Fresh water eutrophication classification during the previous and current reporting period.
Aggregated values for 2008-2011, Eutrophic and Hypertrophic: 50%
Aggregated values for 2012-2015, Eutrophic and Hypertrophic: 8%
111
 kom (2018) 0257 - Ingen titel
Saline waters
Not relevant
Main findings of monitoring programmes in line with Article 5 (6) of the Directive
Water monitoring is organised by the Direction Générale Opérationnelle Agriculture, Ressources naturelles et
Environnement (DGARNE). Water quality data are coming directly from measurements of DGARNE (30%) and
from drinking water producers (70%). There is a large variation in monitoring frequency, from once every four
years for small catchments to 12 per year for large catchments. The ND and WFD monitoring network have
been standardized so that the same monitoring stations are used. 33 stations were removed from the network
for various reasons such as inaccessibility, retirement of drinking water production and inconsistency of some
results.
Pressure from agriculture
The total agricultural area remained stable, but there was a shift from pasture (-12%) to arable land (+12%).
The use of organic nitrogen from manures decreased with 5%, while there was a 5% increase of mineral
fertilizer nitrogen. Cattle, pig and poultry numbers decreased by 5%, 6% and 2%, respectively.
Long-term (past 15 to 25 years) statistical and modelling analysis of national nitrogen and phosphorus flows
have been included in the report, and show consistent reductions in nutrient inputs, nutrient surpluses and
discharges to water bodies. The main developments in agriculture that are considered to be favourable for the
reduction of nitrogen losses are a high participation in agri-environmental measures (eg. natural grassland,
hedges, extensive cropping), a lower use of mineral fertilizers, and an increasing number of soil and manure
analyses to support nutrient efficient farm management. An unfavourable development is the increasing
proportion of temporary grasslands.
Controls
The proportion of farms visited in the current reporting period was 1% (cross compliance). The proportion of
compliance varied from 82 to 97% for the several measures in the Code of Good Agricultural Practice, and
from 89 to 100% for the AP. Most infringements were related to storage capacity and the limitation of 170 kg
N/ha from livestock manure.
In addition to cross compliance checks, the authorities measure nitrate in the soil (APL: potential leachable
nitrogen) of three fields per farm on 5% of the farms in NVZs. The proportion of samples that were compliant
with the soil- and crop-specific reference levels varied between 82 and 87% for the 2012-2015 period.
Designation of nitrate vulnerable zones (NVZs)
Wallonia’s NVZs covered 9,596 km
2
, which is 57% of the territory and 69% of the utilised agricultural area. In
2013, the NVZ was extended from 7,072 to 9,596 km
2
(+36%). The Wallonia report states that some errors in
codes of NVZs have been corrected since the last reporting period (some monitoring stations were allocated to
the wrong NVZ).
112
 kom (2018) 0257 - Ingen titel
Belgium - Federal
Water quality
5
Water monitoring stations
Description
Total groundwater stations
Total fresh surface water stations
Stations with
measurements
-
-
Stations with trends
-
-
10
Total saline surface water stations
10
Table 1. Number of water monitoring stations (6 coastal and 4 marine stations)
Surface water quality
The nitrate concentration is less than 2 mg/l for all coastal and marine stations.
Eutrophication
Saline waters
The Belgian Federal report presents the water quality of coastal and marine waters. The nitrogen (winter
concentration) sources for the Belgian coastal waters are the Schelde and small Belgian rivers (28%), Rijn and
Maas (17%), Seine and other French rivers (9%) and Thames (<1%) rivers, western and northern Atlantic
waters (27%), and atmospheric deposition (19%). Nitrogen and phosphorus loads from the Belgian territory to
the coastal waters are pre-dominantly coming from the Schelde (80%).
There are ten monitoring stations used for OSPAR and WFD monitoring. Three of these stations are used for
eutrophication assessment, and are analysed on chlorophyll, total nitrogen and phosphorus and the N/P ratio.
For phytoplankton, the threshold value for a good ecological status is 15 µg/l (chlorophyll P90 during the
growing season, for a period of six years). Between 2009-2014 the average value was 17 µg/l (moderate
status). The threshold values for nitrogen and phosphorus are 15 and 0.8 µmol/l, respectively. During the
period 2009-2014, the overall average values were 29.8 and 0.8 µmol/l, respectively (moderate status).
Nitrogen concentrations were consistently higher than the threshold value, whereas phosphorus
concentrations were lower than the threshold in 2011 and 2014.
Longer term trends (2003-2011) show increasing concentrations of chlorophyll, but this is attributed to
hydrometeorological variations. Long term (1990-2014) trends for nitrogen concentrations show a reduction,
but with large inter annual variations. For phosphorus, the concentrations are rather stable.
Water quality data are based on data submitted by the Member States through EIONET (RP6: June 2016, RP5: May 2013, RP4: September
2009). Average nitrate concentrations for each Reporting Period were calculated from the annual averages and weighted according to
the number of annual measurements. Other information is taken from the MS article 10 report.
113
 kom (2018) 0257 - Ingen titel
Member State: Bulgaria
Water quality
6
Water monitoring stations
Description
Total groundwater stations
Total fresh surface water stations
Total saline surface water stations
Table 1. Number of water monitoring stations
Stations with
measurements
406
318
6
Stations with trends
359
289
3
Groundwater quality
Nitrates concentration
Trends in nitrates concentration
Figure 1. Percentage of groundwater
stations with average values equal to or
exceeding 25, 40 or 50 mg nitrate per L
during the current and previous
reporting periods. Results are presented
for all groundwater stations (at different
depths).
Figure 2. Percentage of stations
with decreasing, stable or
increasing trends in average
groundwater nitrate
concentrations between the
reporting periods 2008-2011 and
2012-2015.
Water quality data are based on data submitted by the Member States through EIONET (RP6: submission between October 2016 and
March 2017, RP5: May 2013, RP4: September 2009). Average nitrate concentrations for each Reporting Period were calculated from
the annual averages and weighted according to the number of annual measurements. Other information is taken from the MS article
10 report.
114
 kom (2018) 0257 - Ingen titel
Surface water quality
Nitrates concentration
Trends in nitrates concentration
Figure 3. Percentage of fresh surface
water stations with average values equal
to or exceeding 25, 40 or 50 mg nitrate
per L on average during 2012-2015 and
the previous reporting periods.
Eutrophication
Figure 4. Percentage of stations
with decreasing, stable or
increasing trends in fresh
surface water nitrate
concentrations between the
reporting periods 2008-2011
and 2012-2015.
Fresh waters
Eutrophication assessment of rivers was performed using the concentrations of nitrate and ortho-phosphate.
For lakes eutrophication assessment was performed using the concentrations of nitrate, total-phosphate,
chlorophyll-a and transparency (Secchi-disc). The classification is carried out according to the OECD method.
Figure 5. Fresh water eutrophication classification during the previous and current reporting period.
Aggregated values for 2008-2011, Eutrophic and Hypertrophic: 20%
Aggregated values for 2012-2015, Eutrophic and Hypertrophic: 19%
115
 kom (2018) 0257 - Ingen titel
Saline waters
Figure 6. Saline water eutrophication classification during the previous and current reporting period.
Aggregated values for 2008-2011, Eutrophic and Hypertrophic: 100%
Aggregated values for 2012-2015, Eutrophic and Hypertrophic: 33%
Eutrophication assessment of coastal water was performed using the concentrations of nitrate and
chlorophyll-a. The eutrophication classification is based on the worst value of the eutrophication parameters
Main findings of monitoring programmes in line with Article 5 (6) of the Directive
The frequency of surface water monitoring varies between 2 and 12 times a year. Nitrate is measured 12, 12
and 4 times a year for rivers, lakes and coastal waters, respectively. The frequency of groundwater sampling
was not reported.
Pressure from agriculture
When comparing the current Reporting period with the previous Reporting period, the total agricultural area
decreased by 4%. The agricultural land available for manure spreading is 95% of the agricultural land, and
remained constant. The permanent grassland area is 27% of the total agricultural area, but decreased by 17%.
The area of perennial crops is 3% of the total agricultural land and decreased by 18%. The use of manure N
increased by 7% and the use of mineral N fertilizer increased by 3%. The total number of farms decreased by
31%, while the number of farms with livestock decreased by 34%. The numbers of cattle remained constant,
while the number of pigs and poultry decreased by 19% and 15%, respectively. The changes in nitrogen
excretion from livestock followed the same pattern.
Controls
The total number of checks in the reporting period was 7,729 of which 4,360 took place in the NVZ. The
inspections of farms are carried out in the framework of cross compliance and compliance with the
Programme of Measures for Limiting and Preventing Pollution Caused by Nitrates (Action Programme).
Designation of nitrate vulnerable zones (NVZs)
The nitrate vulnerable areas (NVZ) have been defined firstly in 2003, and have been changed in 2007 and 2011.
The current NVZ area is 38,352 km
2
, which is 34.5% of the total territory and 72% of the agricultural area. No
changes have been made in the current reporting period.
116
 kom (2018) 0257 - Ingen titel
Member State: Croatia
This is the first report from Croatia. Therefore it does not contain information about previous periods or
trends.
Water quality
7
Water monitoring stations
Description
Total groundwater stations
Total fresh surface water stations
Total saline surface water stations
Table 1. Number of water monitoring stations
Stations with
measurements
126
64
0
Stations with trends
0
0
0
Groundwater quality
Nitrates concentration
Figure 1. Percentage of groundwater
stations with average values equal to or
exceeding 25, 40 or 50 mg nitrate per L
during the current and previous
reporting periods. Results are presented
for all groundwater stations (at different
depths).
Groundwater monitoring is only carried out inside NVZs.
Water quality data are based on data submitted by the Member States through EIONET (RP6: submission between June 2016 and March
2017). Average nitrate concentrations for each Reporting Period were calculated from the annual averages and weighted according to
the number of annual measurements. Other information is taken from the MS article 10 report.
117
 kom (2018) 0257 - Ingen titel
Surface water quality
Nitrates concentration

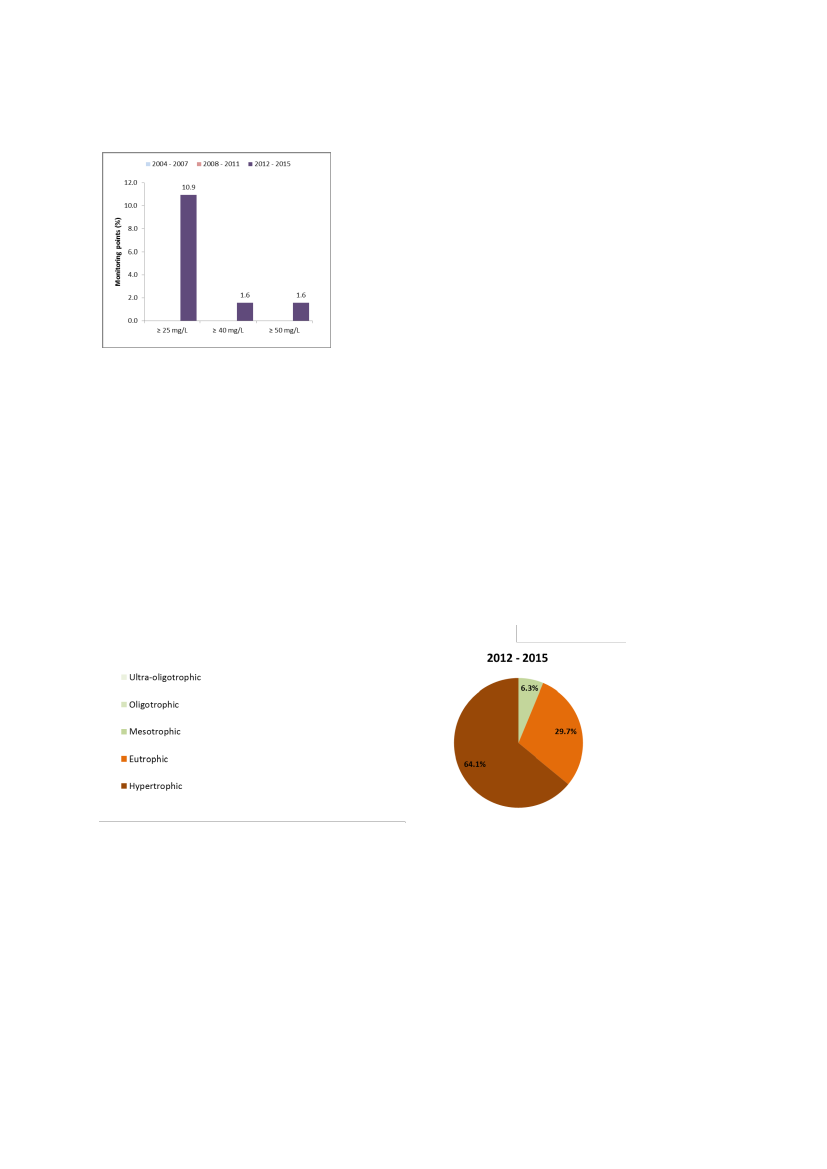

Figure 2. Percentage of fresh surface
water stations with average values equal
to or exceeding 25, 40 or 50 mg nitrate
per L on average during 2012-2015 and
the previous reporting periods.
The report states that surface water monitoring is only carried out inside NVZs (nevertheless two surface
water stations are located outside the NVZ).
Eutrophication
Fresh waters
The evaluation methodology for the trophic status, which was also used during the process of identification of
vulnerable zones in Croatia, uses total phosphorus for rivers and total phosphorus and chlorophyll-a for lakes
and reservoirs.
Figure 3. Fresh water eutrophication classification during the previous and current reporting period.
Aggregated values for 2012-2015, Eutrophic and Hypertrophic: 94%
Saline waters
Not reported.
118
 kom (2018) 0257 - Ingen titel
Main findings of monitoring programmes in line with Article 5 (6) of the Directive
The competent authority for carrying out the monitoring is the Croatian water management company. Water
monitoring is only carried out inside the NVZs. The frequency of the monitoring is not reported. The first
Action Program has been introduced in the country in 2013. The assessments of implementation and effect of
measures of the 1
st
Action programme are currently not available due to the relatively short period of
implementing the Programme.
Pressure from agriculture
In the current Reporting period (2012-2015), the total agricultural area was 27,872 km
2
, of which 40% was
permanent grassland. There were 176,276 farmers, of which 29% keep livestock. The number of cattle, pigs
and poultry was 0.5, 1.5 and 12.9 million, respectively. The gross nitrogen balance for Croatia (OECD) was 27.5
and 30.3 kg N/ha in 2013 and 2014, respectively.
Controls
There were 23,648 farmers in the NVZ, of which 4,036 had livestock. The proportion of farms visited in the
current reporting period was 1% per year (cross compliance). According to the report 1% of the controlled
farmers meet the requirements of the Action Programme.
Designation of nitrate vulnerable zones (NVZs)
Croatia has designated approximately 9% of its territory as NVZ (5,093 km
2
)
119
 kom (2018) 0257 - Ingen titel
Member State: Cyprus
Water quality
8
Water monitoring stations
Description
Total groundwater stations
Total fresh surface water stations
Total saline surface water stations
Table 1. Number of water monitoring stations
Stations with
measurements
230
13
16
Stations with trends
210
10
16
Groundwater quality
Nitrates concentration
Trends in nitrates concentration
Figure 1. Percentage of groundwater
stations with average values equal to or
exceeding 25, 40 or 50 mg nitrate per L
during the current and previous
reporting periods. Results are presented
for all groundwater stations (at different
depths).
Figure 2. Percentage of stations
with decreasing, stable or
increasing trends in average
groundwater nitrate
concentrations between the
reporting periods 2008-2011 and
2012-2015.
Water quality data are based on data submitted by the Member States through EIONET (RP6: submission between July and October 2016,
RP5: May 2013, RP4: September 2009). Average nitrate concentrations for each Reporting Period were calculated from the annual
averages and weighted according to the number of annual measurements. Other information is taken from the MS article 10 report.
120
 kom (2018) 0257 - Ingen titel
Surface water quality
Nitrates concentration
Trends in nitrates concentration

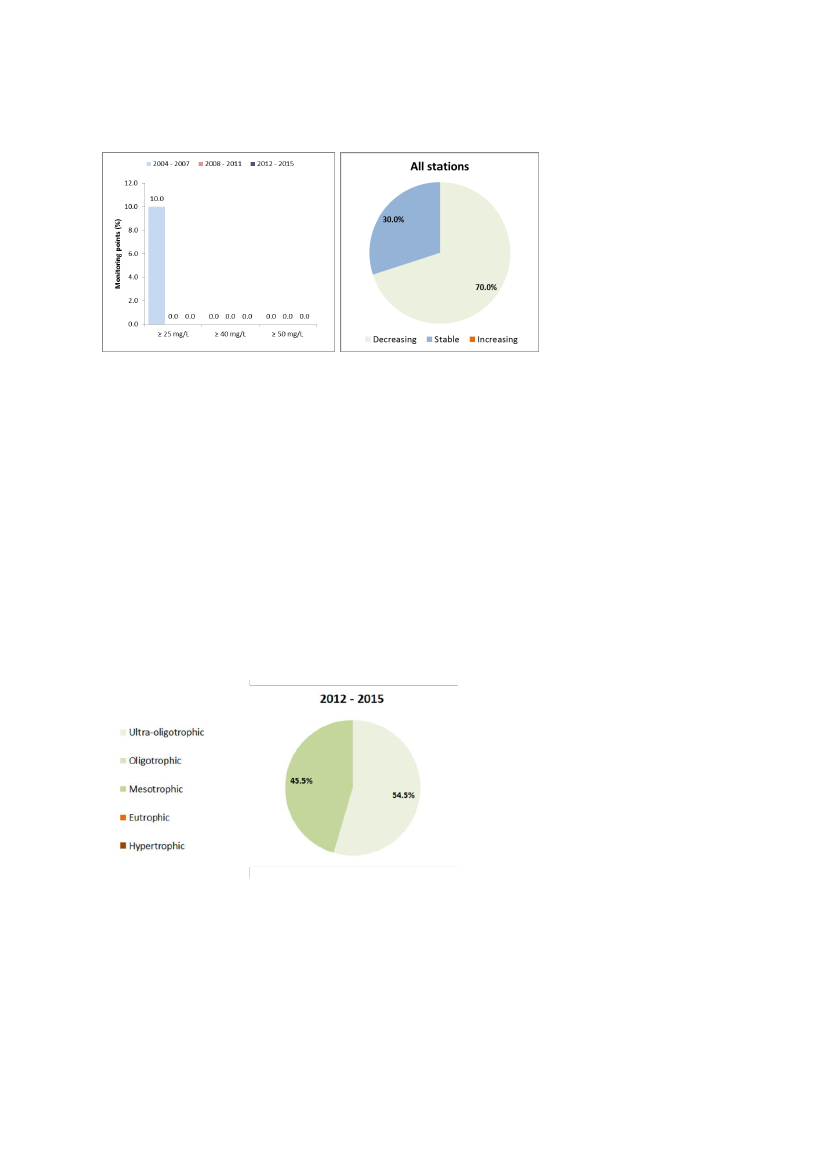

Figure 3. Percentage of fresh surface
water stations with average values equal
to or exceeding 25, 40 or 50 mg nitrate
per L on average during 2012-2015 and
the previous reporting periods.
Eutrophication
Figure 4. Percentage of stations
with decreasing, stable or
increasing trends in fresh surface
water nitrate concentrations
between the reporting periods
2008-2011 and 2012-2015.
Fresh waters
The report states that it is not possible to create a reliable eutrophication assessment model due to the
intense flow fluctuation of surface waters and the extreme climate of Cyprus. In addition to nitrate analyses, a
number of other analyses were carried out regarding other eutrophication parameters, e.g. biochemical
oxygen demand (BOD5), total nitrogen (N-tot), total phosphorus (P-tot) and orthophosphate (P-PO
4
).
Notwithstanding the above doubts about a reliable eutrophication assessment, total phosphorus and
orthophosphate analyses were used to classify fresh surface waters according to the ND trophic methodology.
Surface waters were considered to be eutrophic, above 0.15 mg P/L or above 0.1 mg ortho-P/L.
Figure 5. Fresh water eutrophication classification during the previous and current reporting period.
Aggregated values for 2012-2015, Eutrophic and Hypertrophic: 0%
Cyprus did not report on the trophic status of inland surface waters in the Reporting period 2008-2011.
Saline waters
The report states that all coastal waters have an average annual concentration of nitrate and phosphate below
2 mg/L and annual average chlorophyll-a concentration below 2 g/L.
121
 kom (2018) 0257 - Ingen titel
Main findings of monitoring programmes established in line with Article 5 (6) (5-10
lines)
Three new surface water stations were added in the current Reporting period compared to the previous
Reporting period, to assess the river basin located in the Orounta region, which is identified as NVZ. Two
stations were removed from the coastal monitoring network as they were in close distance to other stations
and because the required use of a craft to access the specific locations was not considered to be cost and time
effective.
Pressure from agriculture
When comparing the current Reporting period with the previous Reporting period, there were little changes in
the total agricultural area and pasture and permanent crops area. Cattle numbers increased by 4%, while pig (-
18%) and poultry (-15%) showed significant reductions. The use of nitrogen from manures decreased with
10%, and mineral nitrogen fertiliser use decreased by 6%.
The reported nitrogen excretion from animals in NVZs was not completed for all NVZs and showed large
changes between the current and previous Reporting period. For those NVZs that reported data, the nitrogen
excretion of cattle (-29%) and pigs (-82%) decreased, while the nitrogen excretion from poultry increased more
than threefold.
Controls
Controls are either carried out as administrative controls (cross-compliance) or on-site checks. In 2012, 65
farms were checked, with no penalties imposed. For 2013 and 2014 these figures were 167 (10 penalties) and
194 (2 penalties), respectively. In both Reporting periods, compliance with the Action Programme varied
between 70% (manure storage and collection capacity) and 100%. During the current Reporting period soil
nitrate sampling has ceased.
Designation of nitrate vulnerable zones (NVZs)
Cyprus’ NVZs covered 444 km
2
, which is 8% of the territory. This included the latest extension in 2011 of 25
km
2
.
The coastal zone of South-eastern Mesaoria is designated as a zone under examination (no further details are
reported). Furthermore, it was decided that part of the Pentaschoinos river basin, covering a total area of 9
km
2
, will be proposed as a new vulnerable zone.
122
 kom (2018) 0257 - Ingen titel
Member State: Czech Republic
Water quality
9
Water monitoring stations
Description
Total groundwater stations
Total fresh surface water stations
Total saline surface water stations
Table 1. Number of water monitoring stations
Stations with
measurements
621
1917
Not relevant
Stations with trends
607
502
Not relevant
Groundwater quality
Nitrates concentration
Trends in nitrates concentration
Figure 1. Percentage of groundwater
stations with average values equal to or
exceeding 25, 40 or 50 mg nitrate per L
during the current and previous
reporting periods. Results are presented
for all groundwater stations (at different
depths).
Figure 2. Percentage of stations
with decreasing, stable or
increasing trends in average
groundwater nitrate
concentrations between the
reporting periods 2008-2011 and
2012-2015.
Water quality data are based on data submitted by the Member States through EIONET (RP6: submission between July 2016 and March
2017, RP5: May 2013, RP4: September 2009). Average nitrate concentrations for each Reporting Period were calculated from the
annual averages and weighted according to the number of annual measurements. Other information is taken from the MS article 10
report.
123
 kom (2018) 0257 - Ingen titel
Surface water quality
Nitrates concentration
Trends in nitrates concentration
Figure 3. Percentage of fresh surface
water stations with average values equal
to or exceeding 25, 40 or 50 mg nitrate
per L on average during 2012-2015 and
the previous reporting periods.
Figure 4. Percentage of stations
with decreasing, stable or
increasing trends in fresh surface
water nitrate concentrations
between the reporting periods
2008-2011 and 2012-2015.
Eutrophication
Fresh waters
Eutrophication assessment consisted almost exclusively of an assessment of the concentration of total
phosphorus. Assessment of other indicators, such as chlorophyll-a, oxygen saturation and pH changes, was
used only in cases where the assessment based on the total phosphorus fluctuated significantly year by year,
and it was necessary to verify the level of eutrophication using other indicators. The trophic level of the
surface waters are assessed using the distinctions between ultraoligo-, oligo-, meso-, eutro- and hypertrophic
are 0.01, 0.035, 0.1 and 0.2 mg/l total phosphorus.
Figure 5. Fresh water eutrophication classification during the previous and current reporting period.
Aggregated values for 2008-2011, Eutrophic and Hypertrophic: 65%
Aggregated values for 2012-2015, Eutrophic and Hypertrophic: 65%
Saline waters
Not relevant
124
 kom (2018) 0257 - Ingen titel
Main findings of monitoring programmes in line with Article 5 (6) of the Directive
Water and agriculture monitoring is organised by the Water Research Institute (VÚV) and the Crop Research
Institute (VÚRV). Surface water quality data are derived from the five state river basin management
enterprises (previously from the Agricultural Water Management Administration) and groundwater data from
the ČHMÚ (Czech Hydrometeorological Institute) observation network.
Pressure from agriculture
The Czech Republic reports statistical data of the year 2011 to represent the previous Reporting period, and
the year 2015 to represent the current Reporting period (thus no 4-year averages). The total agricultural area
has remained almost constant between 2015 and 2011.
The agricultural land available for manure is 80% of the total agricultural area in the Czech Republic and
decreased by 6% in 2015, compared to 2011. The permanent grassland area was 24% of the total agricultural
area in 2015 and increased slightly (+1%) compared to 2011. The area of perennial crops did not change. The
area of legumes increased by 6%. The total number of farms increased by 13% while the number of farms with
livestock decreased by 3%. The numbers of cattle and poultry increased by 5% and 6%, respectively while the
number of pigs decreased by 11% .
The use of animal manure N decreased by 9% while the use of mineral N fertilizer increased by 13%. The
decrease of animal manure use is partly related to the increase of biogas plants (400 plants in 2015) which
results in increasing production of digestate.
The area of the NVZs increased by 5% between the previous and current period while the agricultural land
available for application of manure remained constant (17,000 km
2
). In NVZs, the number of farms and of
farms with livestock both decreased by 18%. The number of cattle, pigs, and poultry in NVZs increased by 8%,
4% and 6%, respectively. As a result of this increase in animal numbers, the annual use of N from livestock
manure increased by 7% in the NVZs.
Controls
There are 18,432 farmers in NVZs, of which 70% have livestock. It is reported that 1% of the farmers are
annually checked whereas in the previous period it was 2%. It is reported that nearly all visited farmers comply
with the requirements of the Action Programme and the principles of good agricultural practice. The only
measure where compliance is lower than 99%, is “manure storage on farmland before land application” which
has a 94% compliance rate. In the previous Reporting period, compliance was always nearly 100%.
Measurable criteria to evaluate the impact of the Action Programme are presented for the entire territory. For
the current Reporting period, the number of analyses of nitrogen in manure was 0.1 per 100 farmers, the
fraction of cultivated land in winter without crop cover was 37%, the average distance of agricultural land to
water bodies was 2 m, and the nitrogen balance surplus was 64 kg N/ha. These figures were almost similar for
the previous Reporting period.
Designation of nitrate vulnerable zones (NVZs)
The nitrate vulnerable zones have been defined in 2003, and have been changed in 2007 and 2011. The
proportion agricultural land in the NVZ relative to the total agricultural land in the Czech Republic increased
from 43% in 2003 to 48% in 2007, and 49% in 2011. A recent review of NVZs was carried out in 2015, and
consequently new NVZs have been declared in August 2016 (50,2 % of the agricultural area).
125
 kom (2018) 0257 - Ingen titel
Member State: Denmark
Water quality
10
Water monitoring stations
Description
Total groundwater stations
Total fresh surface water stations
Total saline surface water stations
Table 1. Number of water monitoring stations
Stations with
measurements
1201
177
44
Stations with trends
1001
138
44
Groundwater quality
Nitrates concentration
Trends in nitrates concentration
Figure 1. Percentage of groundwater stations
with average values equal to or exceeding
25, 40 or 50 mg nitrate per L during the
current and previous reporting periods.
Results are presented for all groundwater
stations (at different depths).
Figure 2. Percentage of stations
with decreasing, stable or
increasing trends in average
groundwater nitrate
concentrations between the
reporting periods 2008-2011 and
2012-2015.
Water quality data are based on data submitted by the Member States through EIONET (RP6: submission between September 2016 and
August 2017, RP5: 10 May 2017 (GW) and May 2013 (SW), RP4: September 2009). Average nitrate concentrations for each
Reporting Period were calculated from the annual averages and weighted according to the number of annual measurements. Other
information is taken from the MS article 10 report.
126
 kom (2018) 0257 - Ingen titel
Surface water quality
Nitrates concentration
Trends in nitrates concentration
Figure 3. Percentage of fresh surface
water stations with average values equal
to or exceeding 25, 40 or 50 mg nitrate
per L on average during 2012-2015 and
the previous reporting periods.
Figure 4. Percentage of stations
with decreasing, stable or
increasing trends in fresh surface
water nitrate concentrations
between the reporting periods
2008-2011 and 2012-2015.
Eutrophication
Eutrophication caused by excessive amounts of nutrients is mainly a problem in lakes, marine waters, and
large, slowly flowing rivers. In small streams, the residence time of the water is too small generally for
planktonic algae to become a problem. Thus, monitoring of eutrophication indicators such as chlorophyll
concentration is in Denmark only relevant in lakes, coastal waters and large rivers.
Dissolved nutrients may have an effect on benthic algae and macrophytes. Denmark has not yet established a
classification scheme for deriving faunal impacts of nutrient enrichment in water courses. Therefore, Denmark
has focused its environmental monitoring in streams on organic matter indicators such as BOD. In Danish
water courses there is no monitoring of secchi depth, chlorophyll or other impact indicators of eutrophication.
Fresh waters
The classification of the ecological state of lakes is based on the quality elements chlorophyll, phytoplankton,
macrophytes and fish. Lakes missing one or more quality elements (phytoplankton, macrophytes or fish) are
downgraded from high/good to moderate ecological state, if summer mean nutrient levels exceed 0,080 mg
P/l and 0,95 mg N/l (shallow lakes) or 0,042 mg P/l and 0,90 mg N/l (deep lakes).
The data reported for the eutrophication status of Danish lakes is in accordance with the classification of the
ecological state of lakes in the second (2015-2021) River Basin Management Plan (RBMP).
The uploaded data for lakes consist of monitoring data from 662 lakes, of which 25% were classified as
high/good and 75% as moderate/bad/poor (second river basin management plan). If a similar approach would
have been used as in the previous reporting periods, i.e. classifying eutrophication status in Danish lakes based
on thresholds for chlorophyll concentration, the distribution of all previously reported lakes (196), also
monitored during RP6, would have shown a comparable distribution as RP5 with 35% as “high/good” and 65%
as “moderate/bad/poor”, respectively.
127
 kom (2018) 0257 - Ingen titel
Figure 5. Fresh water (lakes only) ecological state during the previous reporting period and according to the latest River
Basin Development Plans (RBMP 2016).Classification in the RP 2008-2011 has been based on the Chlorophyll a
concentration for 200 monitored lakes, whereas the classification of the ecological states of 662 lakes in the RBMP 2016
has been based on available monitoring data for the quality elements chlorophyll a, phytoplankton, macrophytes and
fish.
Figure 5. Fresh water (lakes only) eutrophication classification during the previous reporting period.
Aggregated values for 2008-2011, Eutrophic and Hypertrophic: 89%
Saline waters
The report uses the average summer concentrations of chlorophyll in surface waters (0-10 m) as a proxy for
eutrophication in Danish estuarine, coastal and marine open waters. The report presents a map of chlorophyll
concentrations, but does not present the eutrophication status of these waters. At no station did chlorophyll
a
concentration increase at any time – neither from RP5 to RP6, nor from RP2 to RP6. However, it is stated that
chlorophyll cannot stand alone as a proxy for eutrophication as changes in other interrelated parameters like
Secchi-depth, bottom water oxygen concentration, eelgrass cover and fauna biomass are also affected during
eutrophication. In Denmark, the eutrophication status for coastal waters is officially based on the Water
Framework Directive, i.e. based on the status for both chlorophyll, eelgrass depth limit and a benthic fauna
index, DKI using the one out-all out principle. In the Danish River Basin Management Plans 2015-21, the
environmental objectives are fulfilled for 2 out of 119 estuarine/coastal water bodies ( i.e. have good or high
ecological status).
128
 kom (2018) 0257 - Ingen titel
Furthermore the report present a map of maximum surface (0-10 m) nitrate concentrations for the Reporting
period 2012 – 2015 at 58 stations in Danish estuarine, coastal and marine open waters. Based on the reporting
guidelines, the report states that nitrate concentrations <2 mg/l are considered oligotrophic, between 2-10
mg/l mesotrophic, and > 10 mg/l eutrophic. The map shows 3 estuarine and coastal stations that are
eutrophic, while the other estuarine and coastal stations are mainly mesotrophic. The marine open water
stations are mostly oligotrophic.
Main findings of monitoring programmes in line with Article 5 (6) of the Directive
The groundwater monitoring programme is designed to monitor recent groundwater recharged since the
1940s. Implementation of the Water Framework Directive has required adjustments of the groundwater-
monitoring network and thus some monitoring points used for previous Reporting period were closed and new
ones were established in the last Reporting period. The adjustments were expected to be finalised in 2016, but
delayed until mid-2017.
Pressure from agriculture
The total agricultural area was slightly smaller (-2%) in the current Reporting period compared to the previous
Reporting period. The number of farms decreased by 12% in that same period. Cattle and pig numbers
decreased by 3% and 6%, respectively, whereas poultry numbers increased by 2%. The nitrogen excretion
followed the changes in animal numbers. The use of nitrogen from manures decreased with 4% (10.000 t N)
since the previous Reporting period, but this was partly compensated by a 3% increase (5.000 t N) in the use of
mineral fertilizer nitrogen.
The annual surplus of the national nitrogen field balance was reduced from around 405 Mt N in 1990 to
around 220 Mt N in 2014, which corresponds to a reduction of more than 40%. The most significant reduction
was observed until 2003. The N surplus per ha has been reduced from 128 kg N/ha in 1990 to 80 kg N/ha in
2014. Over the past three years (2012-2014), the N surplus was 83, 79, 80 kg N/ha, respectively.
The total nitrogen discharge to the sea showed little change since RP5; the discharge from agriculture was not
specified in detail but was estimated at 70% of the total.
Controls
Besides the administrative controls (including an automated Fertilizer Accounting system), 1.9% of all
agricultural holdings were visited. On nearly 10% of the visited farms (2014), the fertilizer accounts and
fertilizer use were not compliant with regulations. Furthermore, 3% infringements were reported on the
amount of livestock manure applied to land.
Designation of nitrate vulnerable zones (NVZs)
Denmark applies a whole territory approach (43,908 km
2
).
129
 kom (2018) 0257 - Ingen titel
Member State: Estonia
Water quality
11
Water monitoring stations
Description
Total groundwater stations
Total fresh surface water stations
Total saline surface water stations
Table 1. Number of water monitoring stations
Stations with
measurements
385
324
26
Stations with trends
108
116
22
Groundwater quality
Nitrates concentration
Trends in nitrates concentration
Figure 1. Percentage of groundwater
stations with average values equal to or
exceeding 25, 40 or 50 mg nitrate per l
during the current and previous
reporting periods. Results are presented
for all groundwater stations (at different
depths).
Figure 2. Percentage of stations
with decreasing, stable or
increasing trends in average
groundwater nitrate
concentrations between the
reporting periods 2008-2011 and
2012-2015.
Water quality data are based on data submitted by the Member States through EIONET (RP6: submission between June and October 2016,
RP5: May 2013, RP4: September 2009). Average nitrate concentrations for each Reporting Period were calculated from the annual
averages and weighted according to the number of annual measurements. Other information is taken from the MS article 10 report.
130
 kom (2018) 0257 - Ingen titel
Surface water quality
Nitrates concentration
Trends in nitrates concentration
Figure 3. Percentage of fresh surface
water stations with average values equal
to or exceeding 25, 40 or 50 mg nitrate
per l on average during 2012-2015 and
the previous reporting periods.
Figure 4. Percentage of stations
with decreasing, stable or
increasing trends in fresh surface
water nitrate concentrations
between the reporting periods
2008-2011 and 2012-2015.
Eutrophication
Fresh waters
The eutrophication assessment of rivers is based on the annual average total nitrogen and total phosphorus
concentrations. Limit values are specific for two river types (the third, a separate “large river” type is for Narva
River) with specific class boundaries. The eutrophication assessment of lakes is based on the annual average
total nitrogen, total phosphorus and chlorophyll-a concentrations. The eight different types of lakes are
distinguished with specific class boundaries. The Water Framework Directive (WFD) ecological classes are re-
classified into four trophic states for Nitrate Directive reporting: no eutrophication, may become eutrophic,
eutrophic, and hypertrophic.
2008-2011
No Eutrophication
May become eutrophic
Eutrophic
Hypertrophic
79,3%
11,7%
8,3%
0,7%
2012-2015
88,2%
8,1%
3,2%
0,6%
Table 2. Fresh water eutrophication classification during the previous and
current reporting period.
Aggregated values for 2008-2011, Eutrophic and Hypertrophic: 9%
Aggregated values for 2012-2015, Eutrophic and Hypertrophic: 4%
Saline waters
The eutrophication assessment of coastal water is based on the annual average total nitrogen, total
phosphorus and chlorophyll-a concentrations, and specific class boundaries are distinguished for six coastal
water types. The WFD ecological classes are re-classified into four trophic states for ND reporting: no
eutrophication, may become eutrophic, eutrophic, and hypertrophic.
131
 kom (2018) 0257 - Ingen titel
2008-2011
No Eutrophication
May become eutrophic
Eutrophic
Hypertrophic
5,3%
63,2%
26,3%
5,3%
2012-2015
0,0%
46,5%
46,5%
7,0%
Table 3. Saline water eutrophication classification during the previous and
current reporting period.
Aggregated values for 2008-2011, Eutrophic and Hypertrophic: 32%
Aggregated values for 2012-2015, Eutrophic and Hypertrophic: 54%
Main findings of monitoring programmes in line with Article 5 (6) of the Directive
A new national groundwater monitoring sub-programme for the current reporting period was completed in
2015. It resulted in fewer groundwater monitoring points in the NVZ (115 compared to 282). Given the higher
agricultural load in the NVZ, the density and monitoring frequency (up to 4 times a year) of the network of NVZ
monitoring points is greater than outside the NVZ. The sampling frequency of groundwater was 1 to 4 times a
year. River sampling frequency varies from 4 to 12 times a year on the stations with “continuous” monitoring.
River stations for “ecological status” monitoring are sampled less frequently (once every 6 years, 4 times a
year). Lakes are sampled at least once every 6 years, but some are sampled annually (11 small lakes and 2
large lakes, 4-7 times a year). The monitoring of Estonian coastal waters is carried out in 16 different coastal
water bodies; the four most affected bodies of coastal water are monitored annually and the other 12 once
every six years on a rotational basis.
Pressure from agriculture
The total agricultural area increased by 3%. Three-quarters of the total agricultural production of the country
originates from only 5% of the total number of holdings which use more than half of the agricultural land. The
total number of farms decreased by 2% and the number of livestock farms by 13%. Cattle and poultry numbers
increased by 8% and 16%, respectively. The number of pigs decreased (3%). The annual use of nitrogen from
animal manure has increased by 3%, and the amount of mineral N fertilizer by 12%. In NVZs, the area of
permanent grassland increased by 19%.
Controls
In the Pandivere and Adavere-Põltsamaa NVZ there are 1,382 farms of which 6% were visited on average each
year. Except for the manure storage (84%), 100% of the farmers comply with the requirements.
Designation of nitrate vulnerable zones (NVZs)
Estonia has designated 3,267 km
2
as nitrate vulnerable zones, which is 7% of the total territory and 34% of the
total agricultural area.
132
 kom (2018) 0257 - Ingen titel
Member State: Finland
Water quality
12
Water monitoring stations
Description
Total groundwater stations
Total fresh surface water stations
Total saline surface water stations
Table 1. Number of water monitoring stations
Stations with
measurements
187
167
75
Stations with trends
187
165
75
Groundwater quality
Nitrates concentration
Trends in nitrates concentration
Figure 1. Percentage of groundwater
stations with average values equal to or
exceeding 25, 40 or 50 mg nitrate per L
during the current and previous
reporting periods. Results are presented
for all groundwater stations (at different
depths).
Figure 2. Percentage of stations
with decreasing, stable or
increasing trends in average
groundwater nitrate
concentrations between the
reporting periods 2008-2011 and
2012-2015.Note that only 3
stations were above 40 mg/L.
Water quality data are based on data submitted by the Member States through EIONET (RP6: submission between June 2016 and March
2017, RP5: May 2013, RP4: September 2009). Average nitrate concentrations for each Reporting Period were calculated from the
annual averages and weighted according to the number of annual measurements. Other information is taken from the MS article 10
report.
133
 kom (2018) 0257 - Ingen titel
Surface water quality
Nitrates concentration
Trends in nitrates concentration
Figure 3. Percentage of fresh surface
water stations with average values or
equal to or exceeding 25, 40 or 50 mg
nitrate per L on average during 2012-
2015 and the previous reporting periods.
Figure 4. Percentage of stations
with decreasing, stable or
increasing trends in fresh
surface water nitrate
concentrations between the
reporting periods 2008-2011
and 2012-2015.
Eutrophication
Fresh waters
The parameters used to characterize the trophic status for rivers and lakes are total nitrogen and total
phosphorus, and besides for lakes chlorophyll-a. Trophic classification was checked against ecological status
classification used in WFD reporting in 2016 to make sure that these two classifications are in line.
Figure 5. Fresh water eutrophication classification during the previous and current reporting period.
Aggregated values for 2008-2011, Eutrophic and Hypertrophic: 48%
Aggregated values for 2012-2015, Eutrophic and Hypertrophic: 47%
134
 kom (2018) 0257 - Ingen titel
Saline waters
The parameter used to characterize the trophic status for coastal waters was mainly chlorophyll-a, but total
nitrogen and total phosphorus were also used. Trophic classification was checked against ecological status
classification used in WFD reporting in 2016 to make sure that these two classifications are in line.
Figure 6. Saline water eutrophication classification during the previous and current reporting period.
Aggregated values for 2008-2011, Eutrophic and Hypertrophic: 70%
Aggregated values for 2012-2015, Eutrophic and Hypertrophic: 53%
Main findings of monitoring programmes in line with Article 5 (6) of the Directive
Mainland
Monitoring network used for reporting under nitrates directive covers the whole territory. Surface waters
monitoring is presented only for monitoring locations affected by agriculture (178 stations). Groundwater
monitoring is presented for both locations affected by agriculture (145 stations) and 59 background stations.
The frequency of the monitoring of surface waters and groundwater are not described in the report, but are
available by station and year in the submitted dataset.
Pressure from agriculture
Mainland
The basic information about agriculture is reported for 2002, 2006, 2010 and 2014. The data in the current
(2012-2015) and the previous Reporting period (2008-2011) are compared. The total agricultural area
decreased by 1%. The total number of farmers decreased by 17% and the number of farmers with livestock
decreased by 21%. Currently 31% of farmers have livestock.
The number of poultry increased by 31%. The number of cattle, pigs and others decreased by 2%, 9% and 5%,
respectively. The nitrogen excretion changed accordingly. The annual use of nitrogen from livestock manure
decreased by 3%, while the annual use of mineral N fertilizer decreased by 6%.
According to the report the percentage of spring cereals has decreased in favour of cereals sown in the
autumn, thus increasing the cover in the winter. Cultivation of crops which reduce nitrogen loss has increased,
135
 kom (2018) 0257 - Ingen titel
and also investments in manure-spreading technology have increased. However the number of hectares with
grass has decreased in the period 1999-2015. Leasing of field has increased to about one-third, which tend to
increase application rates of manure, and can result in lower utilization of nutrients by plants. Also the imports
of animal feeds have increased in the last five years (2010-2014): 457, 460, 504, 527, 584 million kg feed.
Åland
The number of animals and cropping areas is given for the years 1990 to 2013. In the current Reporting period,
the agricultural area is about 14,000 ha. There were 492 farms of which 174 had livestock. In the previous
Reporting period (2008-2011) the number of farms was 564 of which 194 had livestock. There were 7 licensed
farms (more than 150 livestock units).
Controls
Compliance with the Nitrates Directive is carried out as part of checks on agri-environmental subsidies. The
results are reported for 2006, 2010 and 2014 in which 1%, 1% and 1.5% of the farmers were audited,
respectively. The compliance in 2014 varied from 85% (manure analysis) to nearly 100%. Criteria to measure
compliance good agricultural practice are reported for 2002, 2004, 2006 and 2014. However most of the
criteria have not been reported in 2014 (the number of nitrogen analyses per 100 livestock producers, the
winter vegetation and the distance to the watercourses).
Designation of nitrate vulnerable zones (NVZs)
Finland has adopted a whole territory approach (304,086 km
2
).
136
